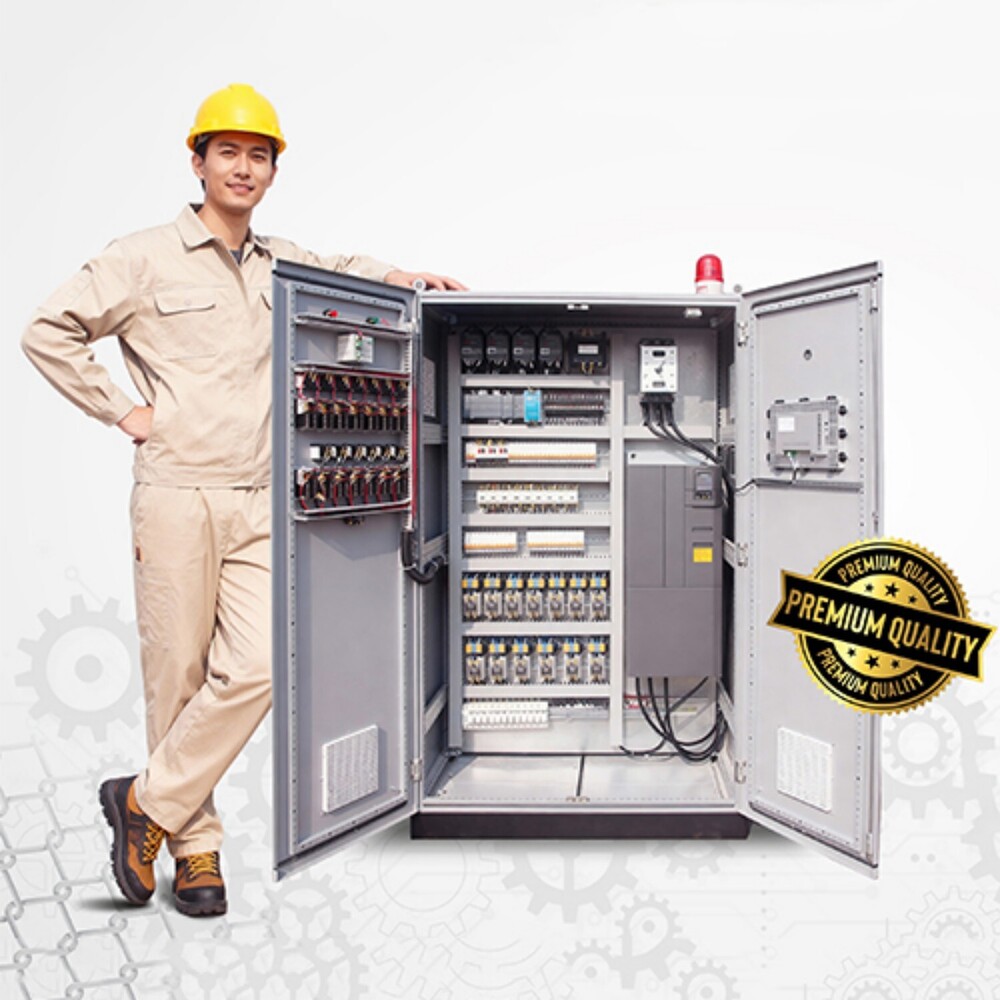

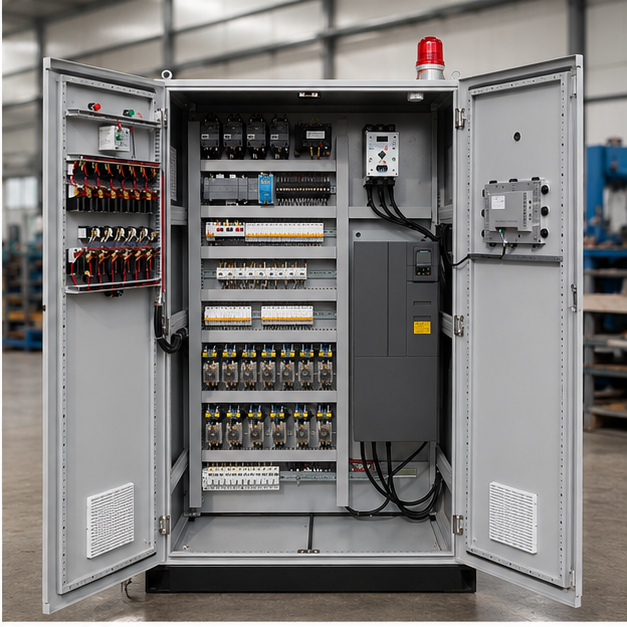

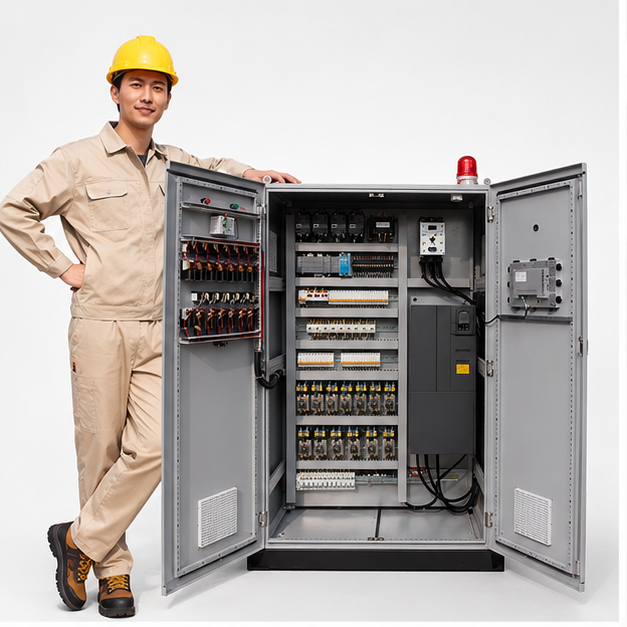

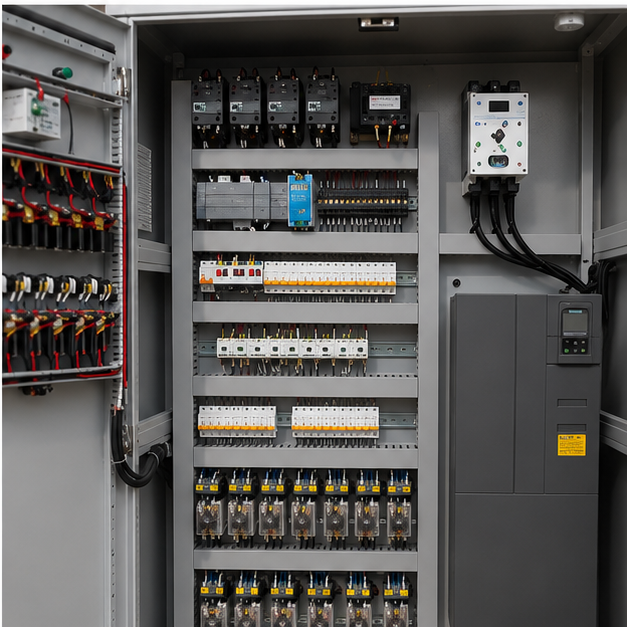

Control Panel Board

Get a Price/Quote

MOQ : 1 Unit

Control Panel Board Specification

Connectivity Type
Wired

Operating Voltage
415 Volt (V)

Way
3 Way

Components
MCB, MCCB, Contactor, Overload Relay

Rated Current
630A Ampere (amp)

Base Material
Mild Steel

Features
Modular design, Corrosion Resistant, Shock Proof

Protection Class
Class I

Current Rating
630A

Thickness
1.6 Millimeter (mm)

Rated Insulation Voltage
690V

Control System
Automatic/Manual

Cooling System
Natural Air Cooled

Cover Material
Powder Coated Steel

Protection Level
IP55

Cabinet Material
CRCA Sheet

Panel Type
Floor Mounted

Rated Operation Voltage
415V

Product Type
Electrical Control Panel

Material
Mild Steel

Surface Finish
Powder Coated

Standard
IEC 61439

Surface Color
Grey

Rated Voltage
415 Volt (V)

Frequency (MHz)
50/60 Hertz (HZ)

Maximum Output Current
630 Ampere (amp)

Dimension (L*W*H)
1200 x 1000 x 400 Millimeter (mm)

Application
Industrial Automation

Display Type
Analog Meter

Door Type
Single/Double Door (as per design)

Enclosure Type
Sheet Metal Enclosure

Busbar Material
Electrolytic Grade Copper

Ambient Humidity
Up to 90% RH (Non-Condensing)

Terminal Type
Spring Clamp

Wiring Type
FRLS Wire

Protection Against
Overload, Short Circuit, Earth Fault

Compliance
CE, ISO 9001:2015

Earth Bar Material
Copper

Suitable Cable Entry
Top/Bottom

Number of Phases
Three Phase

Operating Temperature Range
-10C to +55C

Mounting Type
Floor Standing

Weight
Approx. 85 Kg

Control Panel Board Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
12 Units Per Month

Delivery Time
2-10 Days

Main Domestic Market
All India

About Control Panel Board

Discover a top-drawer Control Panel, engineered for industrial automation with praiseworthy efficiency and an affordable outlay. Utilizing scarce, electrolytic grade copper for superior conductivity, this model boasts phenomenal corrosion resistance and modular, shock-proof design. With a sheet metal enclosure, IP55 protection level, and advanced spring clamp terminals, it's suitable for harsh environments. Take advantage of limited-time discounts on CE and ISO 9001:2015 compliant panels crafted for reliability. Secure yours before this high-demand, scarce product is snapped up by competitors!

Engineered for Industrial Plant Operations

This Control Panel is perfect for a broad array of plant applications, thanks to its robust, powder-coated mild steel construction and modular design. Special features such as overload, short circuit, and earth fault protection make it ideal for demanding industrial settings. Its IP55 rating ensures resilience against dust and water on any industrial surface, while both single and double door options provide versatile, accessible enclosures tailored to installation needs.

Domestic Market Reach & Ordering Terms

With its recent arrival on the market, this Control Panel caters to India's industrial needs. We offer sample units and pride ourselves on a substantial supply ability, ensuring prompt fulfilment. The proposal amount is competitive, reflecting the panel's high spec and reliability. Domestic buyers benefit from swift delivery and cost savings, while the affordable outlay encourages bulk procurement and value-driven installations in manufacturing sectors nationwide.

FAQ's of Control Panel:

Q: How does the control panel ensure safety during operation?

A: The control panel is equipped with protection against overload, short circuit, and earth faults, ensuring optimal safety for both equipment and operators during use.

Q: What makes this control panel suitable for industrial automation applications?

A: Its modular design, robust sheet metal enclosure, and compliance with IEC 61439, CE, and ISO 9001:2015 standards make it eminently suitable for complex industrial automation environments.

Q: Where can this control panel be installed?

A: Thanks to its floor-standing, IP55-rated enclosure and corrosion-resistant, powder coated surface, it can be securely installed in industrial plants, factories, and manufacturing units.

Q: What is the process for securing a sample and placing a bulk order?

A: Contact our sales team to request a sample. After evaluation, a proposal amount and terms are confirmed, making it simple to proceed with a bulk order.

Q: What are the benefits of using electrolytic grade copper busbars?

A: Electrolytic grade copper busbars offer superior electrical conductivity and reduced power losses, ensuring efficient and reliable distribution of electrical current within the panel.
